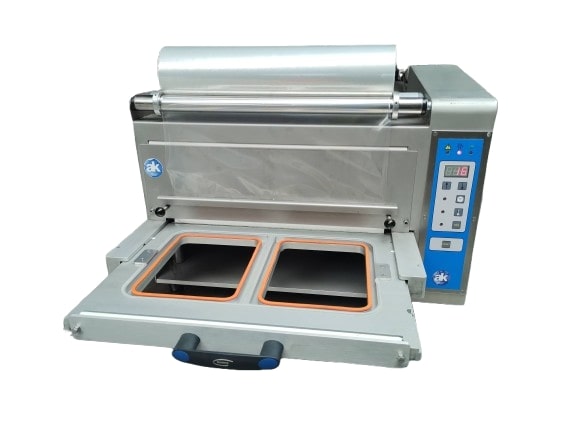

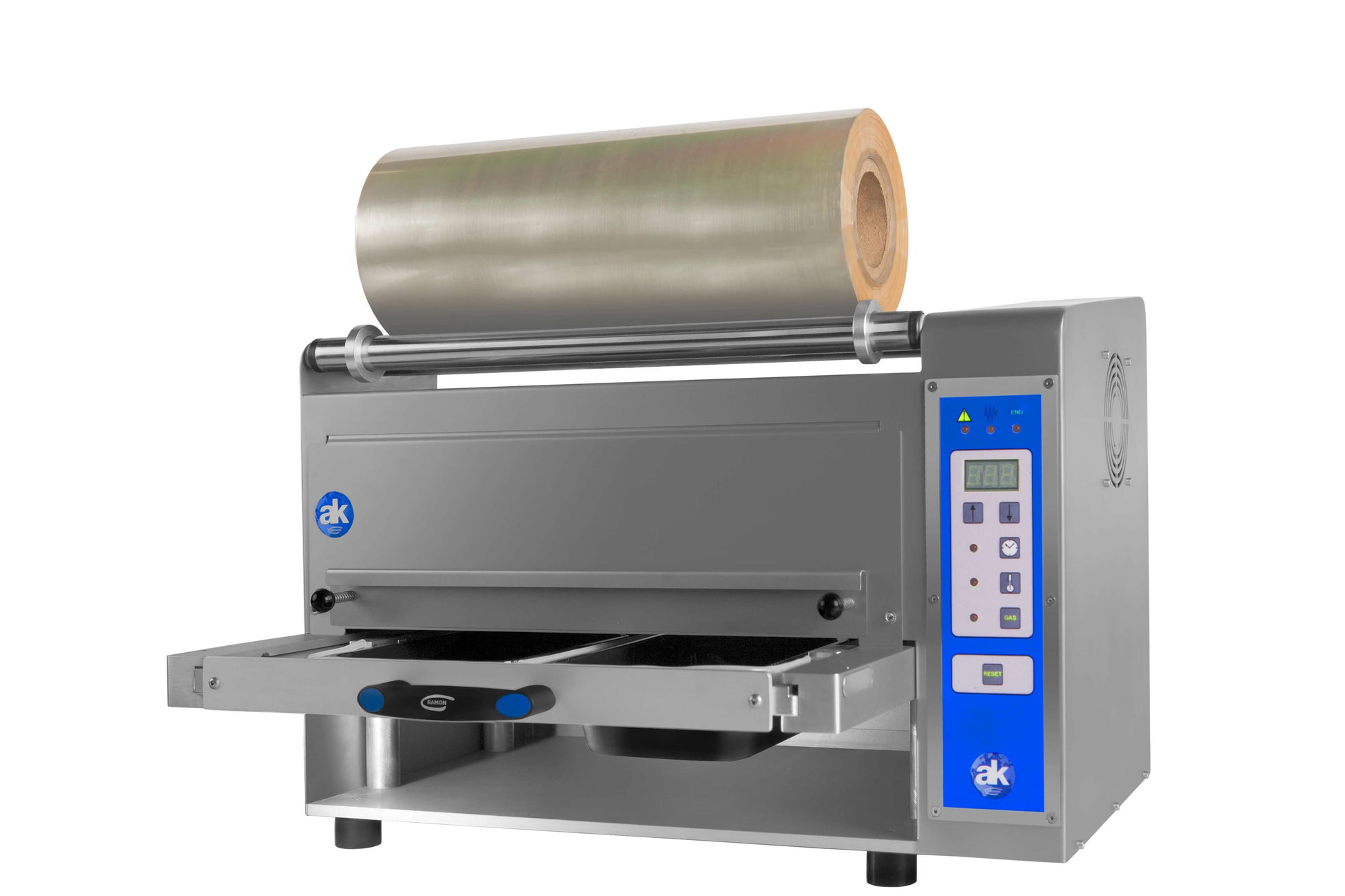

Operators load and unload trays by hand, while the machine handles film advance, sealing and perimeter cutting. The digital panel sets the sealing temperature from 0°C to 230°C and sealing time, giving staff a repeatable process without turning the bench into a full packaging line.

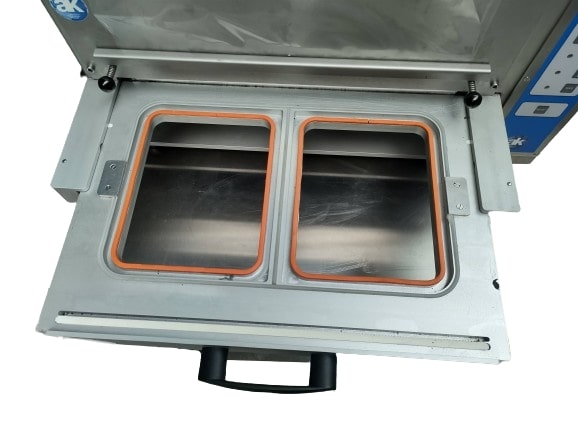

The body is made from AISI 304 stainless steel, with an anodised aluminium die set for tray support and heat transfer. Moulds can be changed quickly, so the same unit can handle tray formats during a shift.
For sauce-heavy meals, a clean perimeter seal helps prevent leaks in storage and transit. The GF version adds gas flushing, and the machine requires compressed air, so check the air supply before installation.
Product Features:
- Semi-automatic tray sealing with automatic film advance
- Digital control panel with temperature and sealing-time regulation
- Perimeter cutting around the tray shape
- Acoustic and visual end-of-cycle alerts
- Fast mould changes for tray sizes
- Works with PP, PET and aluminium trays
- Optional gas flushing on GF models
Specifications:
- Standard moulds: 320 × 260 mm, 260 × 160 mm or 168 × 130 mm
- Maximum sealing surface: 320 × 260 mm
- Film roll width: 430 mm
- Packaging dimensions: 770 × 730 × 700 mm
- Net/Gross weight: 65/75 kg
- Power: 1,500 W
- Voltage: 220 V / 1 phase / 50 Hz
- Requires compressed air
