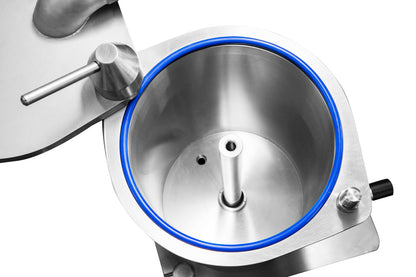

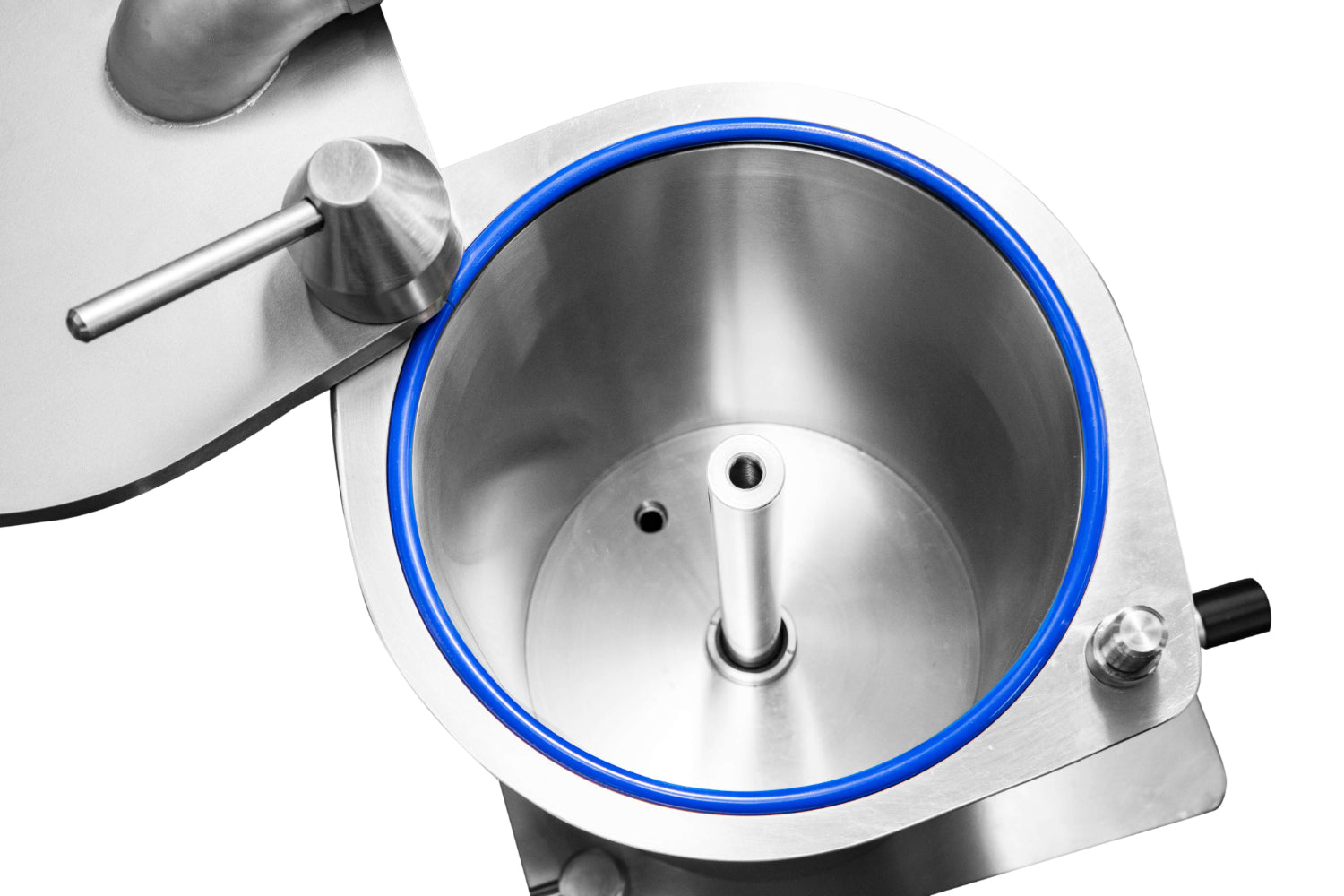

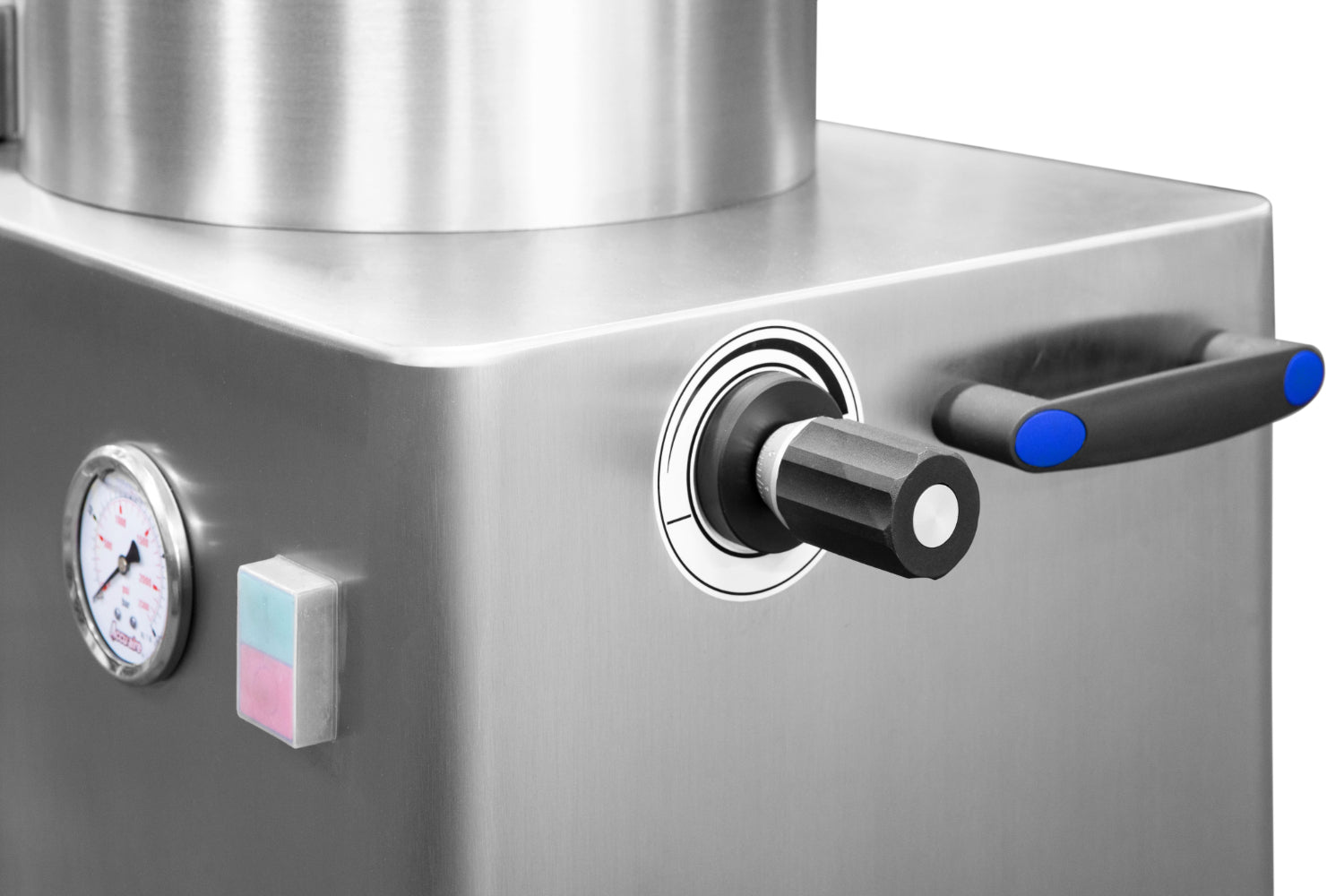

The SC-30 STAR uses a sealed cylinder and baseplate, with a screw-free AISI 304 stainless steel cylinder bottom to help with cleaning around the filling area. The speed regulator and pressure gauge let the operator control fill rate and watch working pressure during batch production, especially when casing size or mix texture changes.

Knee control raises and lowers the piston while the operator works at the nozzle. Automatic piston decompression helps stop mix creeping out after release, cutting bench mess and wasted trim between fills. Wheels and a handle help move the 158 kg machine for cleaning or repositioning.

Product Features:

• 30-litre hydraulic sausage filler for commercial sausage production

• AISI 304 stainless steel body, sealed baseplate and cylinder

• Independent AISI 304 stainless steel oil tank

• Pressure gauge and speed regulator for controlled filling

• Knee control to raise and lower the piston

• Automatic piston decompression to limit unwanted mass output

• Supplied with 12, 20 and 30 mm AISI 304 funnels

Specifications:

• Brand: AK-Ramon

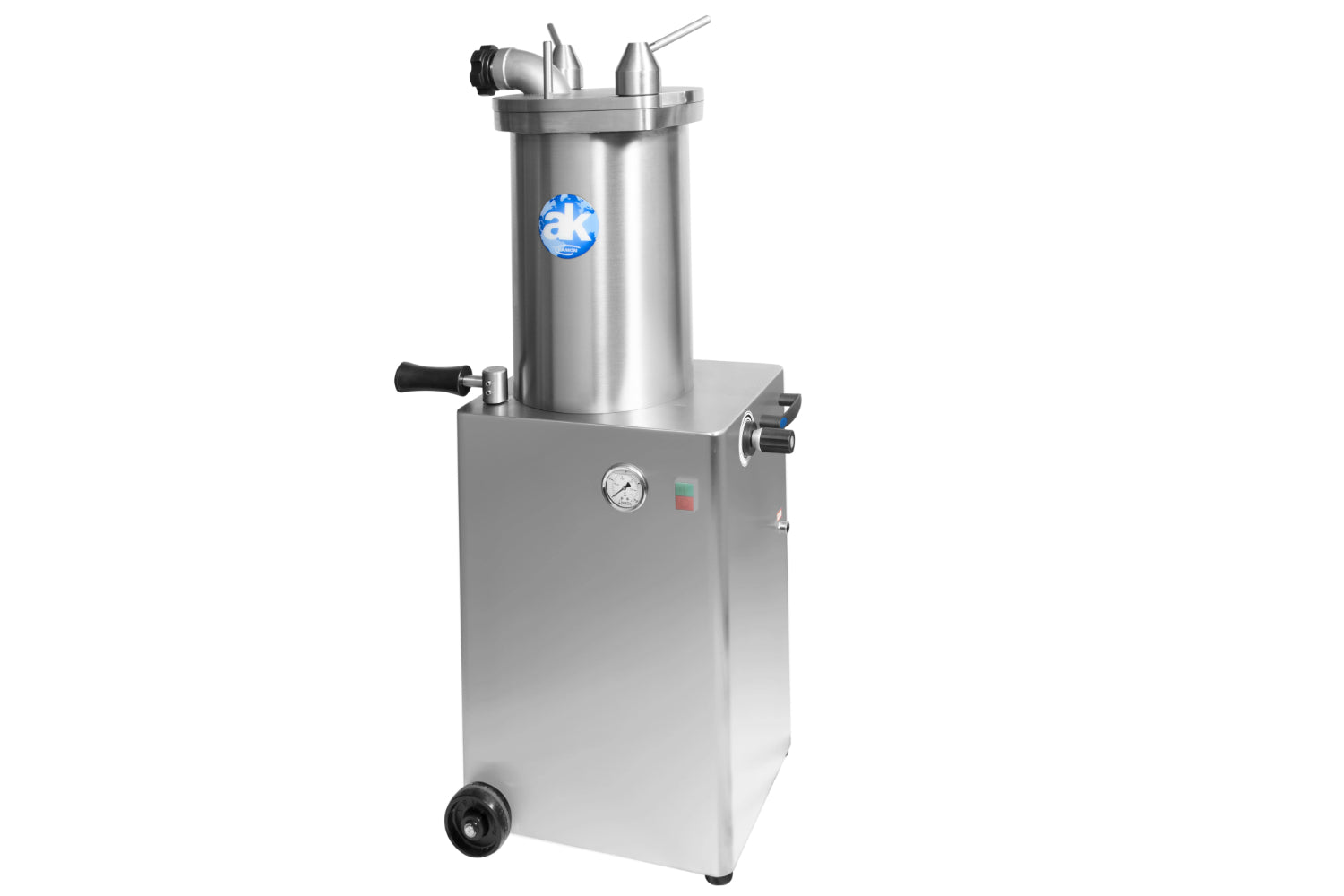

• Model: SC-30 STAR

• Cylinder capacity: 30 litres / approx. 27 kg

• Motor power: 1 HP / 0.75 kW, single-phase or three-phase options

• Net weight: 158 kg

• Dimensions: 820 x 435 x 1250 mm

• Construction options: aluminium cover and piston, or AISI 304 stainless steel cover and piston

About AK-Ramon:

AK-Ramon is a cornerstone of innovation and craftsmanship in the food and packaging machinery industry. Founded in 1957, Ramon has evolved into a globally recognised brand operating in over 80 countries. We offer comprehensive support and advice to ensure you choose the product that best fits your requirements.
