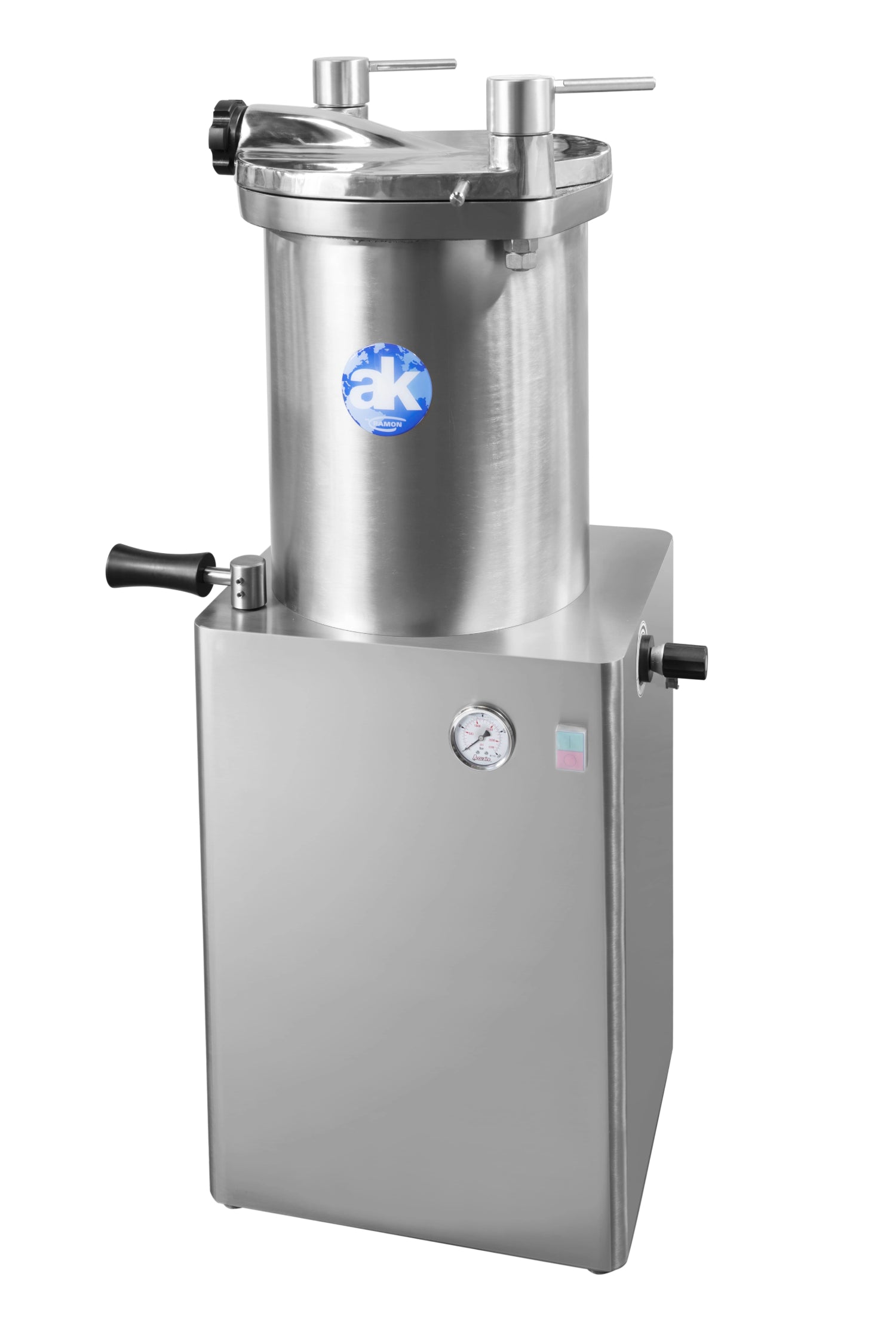

The SC-40 STAR suits larger production rooms where hand-cranked filling is too slow, and smaller cylinders need constant reloading. Its hydraulic piston delivers controlled pressure through the mix, with a speed regulator to adjust flow across casing sizes. The pressure gauge gives the operator a clear read on working load, helping limit overfilling and split casings.
The body is set up for routine cleaning. The cylinder bottom has no screws, and the baseplate and cylinder are sealed together, leaving fewer places for meat residue to trap. AISI 304 stainless steel on the piston rod, lid and oil tank also suits salted and seasoned mixes.
Product Features:
- AISI 304 stainless steel construction
- Independent stainless steel oil tank

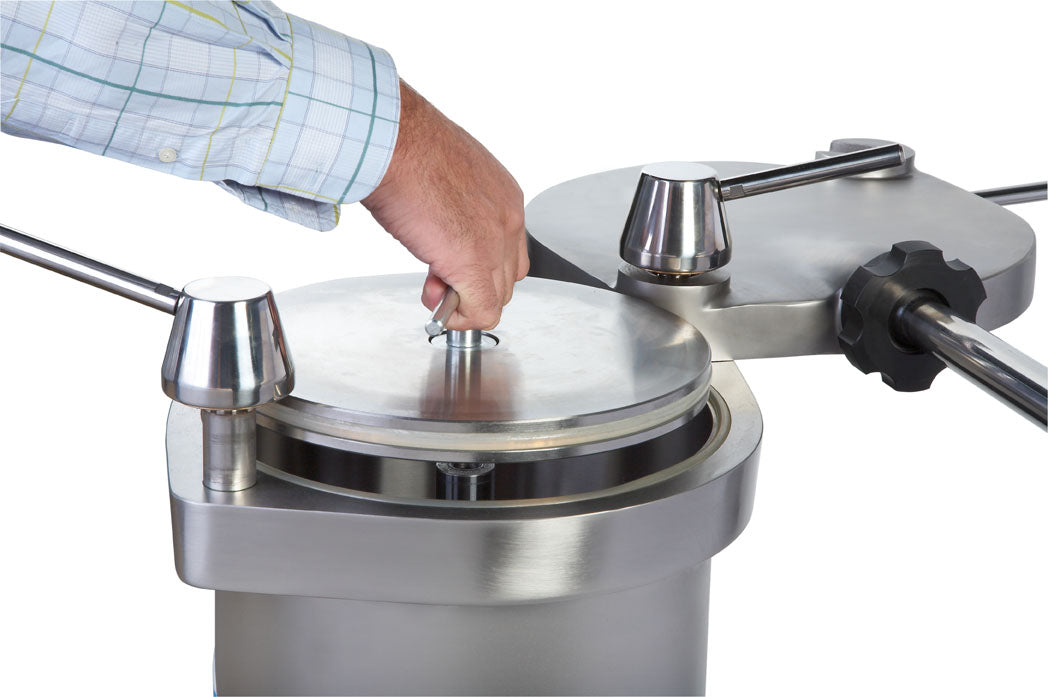

- Knee control for raising and lowering the piston

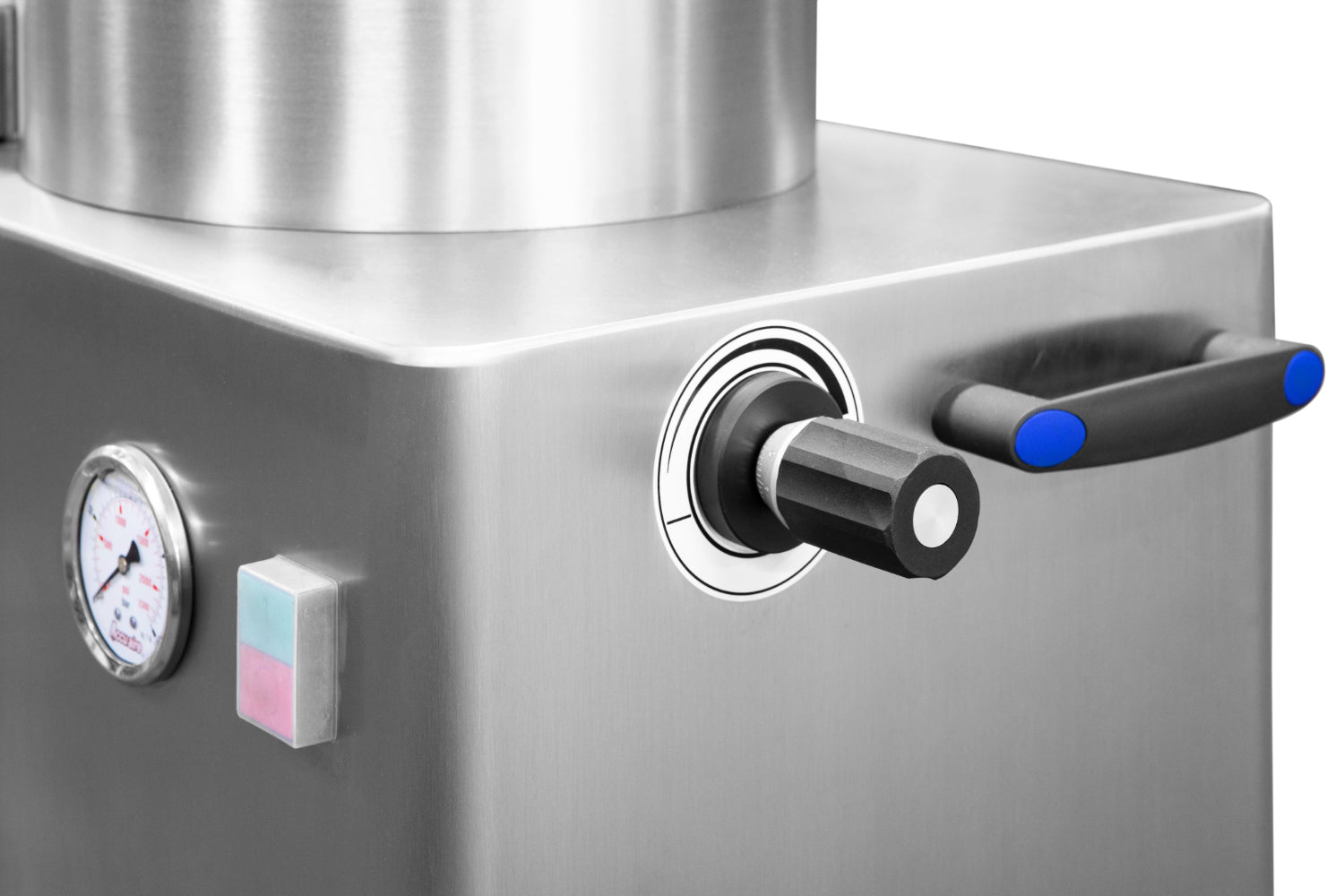

- Speed regulator and pressure gauge for controlled filling
- Automatic piston decompression to help prevent mass leakage

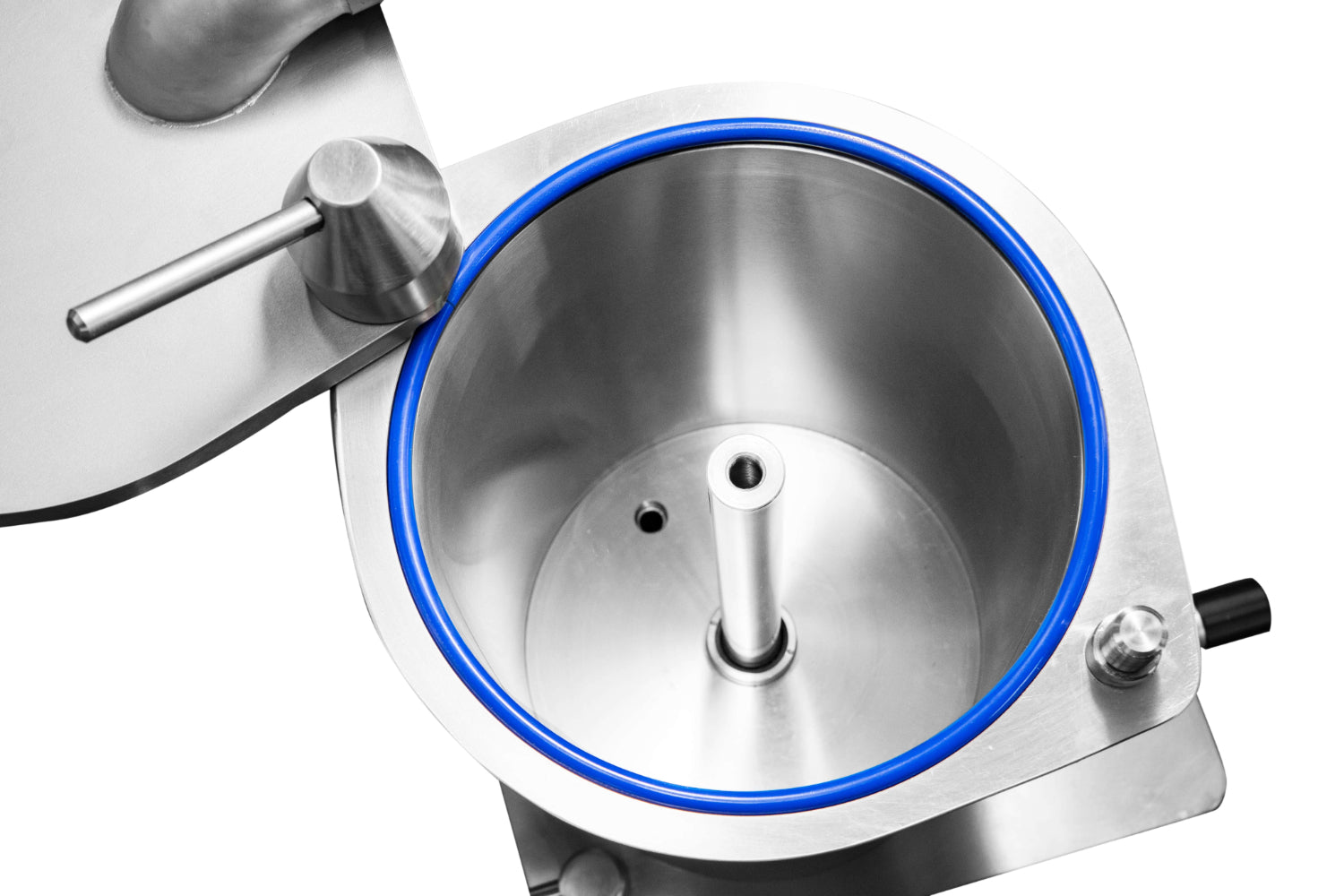

- Screw-free cylinder bottom and sealed baseplate
- Two wheels for movement within the production area
Specifications:
- Cylinder capacity: 40 litres / approx. 37 kg
- Motor: three-phase, 2 HP / 1.5 kW
- Net/gross weight: 186 / 195 kg
- Packing dimensions: 560 x 660 x 1590 mm
- Stainless steel funnels: Ø 12, 20 and 30 mm
About AK-Ramon:
AK-Ramon is a cornerstone of innovation and craftsmanship in the food and packaging machinery industry. Founded in 1957, Ramon has evolved into a globally recognised brand operating in over 80 countries. We offer comprehensive support and advice to ensure you choose the product that best fits your requirements.
